Less Fuel Reliable Operation (8kw-1200kw) electric generator soundproof

FOB Reference Price:Get Latest Price
US $200-129,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HT POWER
Model Number:
HT8GFS-HT1200GFS
Output Type:
AC Three Phase
Speed:
1500/1800 rpm
Frequency:
50/60 Hz
Rated Power:
8kw-1200kw
Rated Voltage:
400/230V,240/120V, etc
Rated Current:
14.4A-2160A
Start method:
12V or 24V DC Electric start
Control system:
Auto control digital system
Module:
Deep-sea, Harsen, Smartgen
Speed governor:
Electronic
Excitation mode:
Brushless
Regulator:
AVR
Connection type:
3 P 4 W
Protection class:
IP22
Noise level:
65-75dBA
Certification:
CE, ISO, EPA
Supply Ability
Supply Ability:
350 Set/Sets per Month
Packaging & Delivery
Packaging Details
1) Outside: Plywood case on export standard.
2) Inner: Shrinking film with foam.
Port
Qingdao, China
Lead Time :
10-15 Working days after receiving the deposit.



Product Description

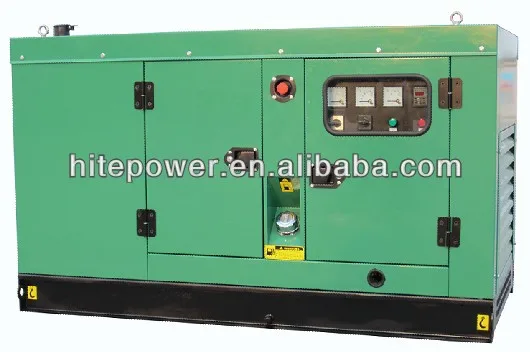

Description of electric generator soundproof:



1) Silent Generator Power Range:  From 10KVA to 1500KVA as Continuous power supply or Standby power.



2) Generator Type: Soundproof type and Noise level <75 dBA (Within 7 meter).



3) Engine Brand: Cummins, Perkins, Deutz, Lovol, Ricardo, Volvo, Weichai Power, etc.



4) Brushless Alternator: Stamford, Marathon,  LEROY SOMER, etc.



5) Automatic Control Module: Deepsea, Harsen, Smartgen, etc.



6) Widely used in: Telecommunications, Communications, Hotels, Entertainment, Hospitals, High-rise buildings, etc.











 Diesel Engine of electric generator soundproof:



Engine Brand

Cummins, Perkins, Deutz, Lovol, Ricardo,


Volvo, Weichai Power, etc.

Aspiration TypeNatural or Turbocharged
Cooling MethodWater cooled
Start Method12V / 24V Electric
Rated Speed1500rpm / 1800rpm
Speed GovernorElectronic / Mechanical
Engine TypeFour stroke, In-line / V type



Brushless Alternator of electric generator soundproof:



Alternator Brand



Stamford, Marathon, Leroy-Somer, etc.



Phase Number
Single phase or Three phase
Connection Type:3 Phase and 4 Wires, “Y” Type connecting
Bearing No.Single
Power Factor:1 or 0.8
Protection Class:IP22
Altitude:<1000m
ExcitationType:Brushless, Self-exciting
Insulation ClassH
Voltage Regulation, Steady   State:<±1%

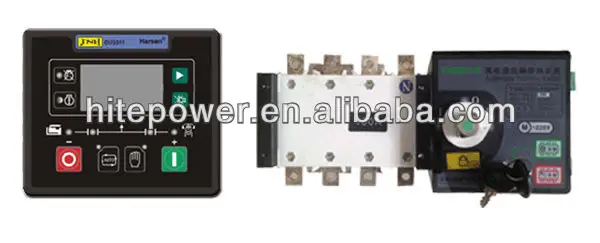

Automatic Control digital system of electric generator soundproof:

     2- ATS

1)  Adopt Genset controller with LCD display, taking microprocessor as the core.



2) Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity.



3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated

     electricity /grid electricity.



4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,

     accumulative total power and number of starts.



5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current,

     over voltage, over frequency and phase failure etc.


Packaging & Shipping
1) Shipment by FCL or LCL.
2) Delivery time: 7-15 working days after the deposit.

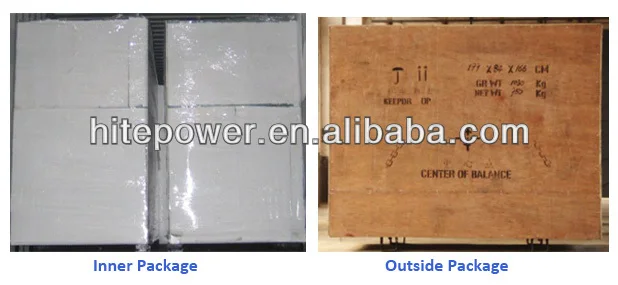

3)Package:  Outside package: Plywood case on export standard.
                        Inner package: Shrinking film with foam.
 .jpg

Our Services



Competitive service:



1) More than 15 years advanced production experience.


2) As OEM factory, we have obvious competitive in price and leading times.


3) Widely power range from 8KW to 1200KW.


4) Provide debugging and maintenance service to you.



5) Professional 8 Hours testing for Generator before shipment.


6) 1500 hours warranty on the spare parts free provide & technical support in machine life.



Producing Work-shops:






Our Certification:



   .jpg



To be the best partner of electric power equipments. Please contact us for any questions.
