Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: HT POWER
  • Model Number: HT-120GF
  • Output Type: AC Three Phase
  • Speed: 1500/1800 rpm
  • Frequency: 50/60 Hz
  • Rated Power: 120KW
  • Rated Voltage: 400/230V,240/120V, etc
  • Rated Current: 132A
  • Start method: 24V DC Electric start
  • Control system: Auto control digital system
  • Module: Deep-sea, Harsen, Smartgen
  • Speed governor: Electronic
  • Excitation mode: Brushless
  • Regulator: AVR
  • Connection type: 3 P 4 W
  • Protection class: IP22
  • Noise level: 65-75dBA
  • Certification: CE, ISO, EPA

Packaging & Delivery

Packaging Details 1) Outside: Plywood case on export standard.
2) Inner: Shrinking film with foam.
Delivery Time 7-15 Working days after receiving the deposit.

Specifications

120KW deutz diesel generator
1) Less fuel consumption
2) 8 Hours professional test
3) Prompt delivery
4) 1500 Hours Warranty




Product Description

Description of 112KW deutz diesel generator:



1) Generator Power Range:  From 16KW to 120KW as Continuous power supply or Standby power.



2) Generator Type: Open type, Soundproof type, Trailer type, Containerization type.



3) Engine Brand: Deutz (WEICHAI POWER).



4) Brushless Alternator: Stamford, Marathon,  LEROY SOMER, etc.



5) Automatic Control Module: Deepsea, Harsen, Smartgen, etc.



6) Applies to: Mines, Buildings, Oil fields, Hospitals, Schools Hotels, etc.



Parameters of 120KW deutz diesel generator:



Deutz
Diesel
Generator
Genset ModelHD-120GF
Rated Power120KW
Standby Power132KW
Rated Frequency50Hz
Rated Voltage400/230V
Rated Current216A
Rated Speed1500rpm
Power Factor0.8 (LAG)
Connection Type3P4W
Deutz
Engine
ModelTBD226B-6D5
TypeIn-line, 4-Stroke.
Rated Power132KW
Standby Power145.2KW
Rated Speed1500 rpm
Cylinder No.6 Cylinders
Bore × Stroke105×120 mm
Displacement5.2 L
Start MethodElectric
Rated Fuel Consumption29.6 L/h
Aspiration TypeTurbocharged
Speed GovernorMechanical
Cooling methodWater cooled
Stamford
Brushless
Alternator
Rated Power (KW)120KW
Rated Voltage (V)400/230
Rated Current (A)216 A
Rated Speed (rpm)1500
Connection Type3P4W
Power Factor0.8
Excitation TypeBrushless
Insulation TypeH
Protection TypeIP22
Voltage RegulatorAutomatic (AVR)



Automatic Control digital system of 120KW deutz diesel generator :



1)  Adopt Genset controller with LCD display, taking microprocessor as the core.



2) Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity.



3) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated

     electricity /grid electricity.



4) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,

     accumulative total power and number of starts.



5) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current,

     over voltage, over frequency and phase failure etc.



Standard Configure of 120KW deutz diesel generator:









Advantage of 120KW deutz diesel generator:



Deutz Diesel EngineStamford Brushless Alternator
Well known Engine brand in Power Generation.International Renowned AC Alternator.
Heavy Duty Features for Day working.Brushless Self-excitation System.
High fuel Efficiency.High Precision AVR.
Excellent Cold Start PerformanceDurable and Reliable.
Compact Body DesignGlobal Spares Supplied.
Global Spares SuppliedHigh Protection Class.



Optional Equipment----Soundproof & Trailer Type of 120KW deutz diesel generator:





Optional Equipment----Auto Paralleling System of 120KW deutz diesel generator:
Advanced automatic paralelling system can make multiple generator set paralleling use or paralleling to Main Power.


Packaging & Shipping

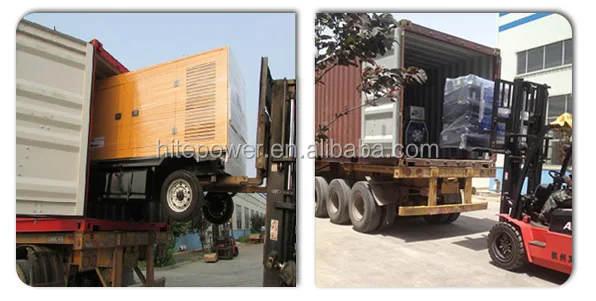

1) Shipment by FCL or LCL.
2) Delivery time: 7-15 working days after the deposit.

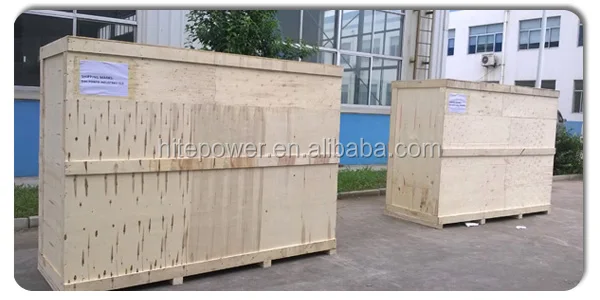

3)Package:  Outside package: Plywood case on export standard.
                        Inner package: Shrinking film with foam.


Our Services



Competitive service:



1) More than 15 years advanced production experience.


2) As OEM factory, we have obvious competitive in price and leading times.


3) Widely power range from 8KW to 1200KW.


4) Provide debugging and maintenance service to you.



5) Professional 8 Hours testing for Generator before shipment.


6) 1500 hours warranty on the spare parts free provide & technical support in machine life.



Producing Work-shops:







Our Certification:





To be the best partner of electric power equipments. Please contact us for any questions.
