High quality 8-1000kw biogas plant biogas system factory for sale

FOB Reference Price:Get Latest Price
US $5,105-386,800 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
380 Set/Sets per Month
Port:
Qingdao,China
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HIGH TECH
Model Number:
HT8GF-HT1000GF
Output Type:
AC Three Phase
Speed:
1500/1800 rpm
Frequency:
50/60Hz
Rated Power:
8-1000kw
Rated Voltage:
400/230V
Rated Current:
14.4-1800A
start method:
electric start
cooling method:
water cooled
gas mixer formation:
Pre-Mix
module:
GU641B
regulator:
AVR
noise level:
65dBA
protechtion class:
IP23
Insulation class:
H
Warranty:
one year or 1500hours
Certificate:
ISO,CE
Packaging & Delivery
Packaging Details
Plywood package on export standard.
Delivery Time
15 days after the deposit.
Product Description
                                              High quality 8-1000kw biogas plant biogas system factory for sale
                                                                                      Pls click here for more information!
Technical data







                      Genset
Genset Model
HT-8GF--HT1000GF
Prime Power
8-1000kw
Rated Voltage
400/230V
Frequency
50/60Hz
Power Factor
0.8(lagging)
The regulating rate of steady voltage
≤±0.5%
The regulating rate of instantaneous voltage
≤-15%/ +20%
The time of steady voltage
≤1.5sec
The waving rate of voltage
≤1.0%
The regulating rate of steady frequency
≤3%
The regulating rate of instantaneous frequency
≤±10%
The time of steady frequency
3sec
The engine datas
       Model
Brand
Rated Power (KW)
Rated Speed (rpm)
Cylinder No.
Bore*Stroke(mm)
Aspiration Type
HT2100D
WF
14KW
1500
2.L
100*115
Natural
HT2100D
WF
14KW
1500
2.L
100*115
Natural
HT4100D
WF
28KW
1500
4.L
100*120
Natural
HT4100D
WF
28KW
1500
4.L
100*120
Natural
HT4100D
WF
28KW
1500
4.L
100*120
Natural
HT4105D
WF
38KW
1500
4.L
105*130
Natural
HT6105D
WF
58KW
1500
6.L
105*130
Natural
HT6105D
WF
58KW
1500
6.L
105*130
Natural
HT6105ZD1
WF
71KW
1500
6.L
105*130
Turbo
HT6126D1
WF
82KW
1500
6.L
126*130
Natural
HT6140D
WD
100KW
1500
6.L
140*160
Natural
HT6140D1
WD
120KW
1500
6.L
140*160
Natural
HT6140D1-1
WD
132KW
1500
6.L
140*160
Natural
HT6126ZD1
WF
180KW
1500
6.L
126*155
Turbo
HT6126ZD1
WF
180KW
1500
6.L
126*155



Turbo charged

&

intercooled
BF6M1015GCP1
DEUTZ
220KW
1500
6.V
132*145
BF6M1015GCP2
DEUTZ
240KW
1500
6.V
132*145
BF6M1015GCP3
DEUTZ
270KW
1500
6.V
132*145
BF8M1015GCP
DEUTZ
340KW
1500
8.V
132*145
BF8M1015GCP
DEUTZ
340KW
1500
8.V
132*145
12V190ZLD1
Jichai
450KW
1000
12.V
190*210
12V190ZLD2
Jichai
550KW
1000
12.V
190*210

The engine departs

1).High Performance Gas Pressure Regular Maed In Italy

2).Advanced Ignition System
3).IMPCO Air-Fuel Mixer Made In USA
4).Stable Electronic Speed Governor
5).High Performance Flame Arrester.

6).High Quality Gas Pipe
7).Safely Explosion-proof System
8).Auxiliary Ignition System

The brushless alternator
Compliance with GB755,BS5000,VDE0530,NEMA MG1-22,IEC-34,CSA C22-100and AS1359 standards
                     Brand
The brand you may choice Stamford,marathon, leroy somer,Chinese brand,etc.
              Excitation type
 brushless
          Number of Bearing
 1
               Rated current
14.4-1800A
              Insulation class
  H
             Protection class
IP23
            Voltage regulator
AVR

The control system--famous brand of Harsen,Deepsea,Smartgen control panel.

1)Easy operation: The HT Gas power Gen is easy to start and operation
2)Main parts like ECU, GAS MIXER, PRESSURE regulator,etc are origin made in USA& Italy

3)Low operation & maintenance cost
4)Longer life:Special design engine has longer life and overhaul time of 30000hours
5)Warranty:one year or 1500 hours

                                                                                      Please click here for contact us !!!
Related Products

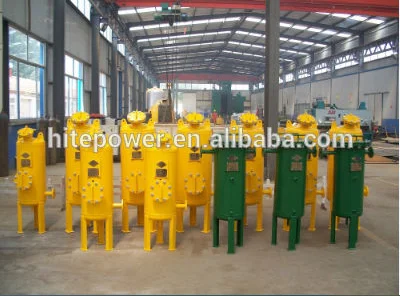

                                        Gasfilters

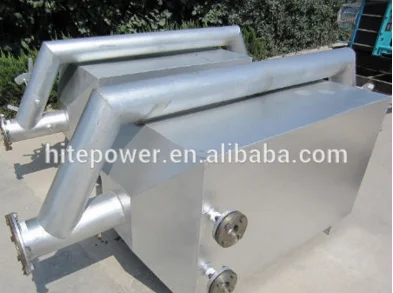

                                           CHP

Our success scene
FAQ

1.What's your power range of diesel generators?

Re:We can offer the range from 2--3000KW.

2.What's your delivery time?

Re:7--15 work days after we get the down payment,if your order is some special engine and alternator,then the delivery time is longer.

3.What's your payment?

Re:We accept T/T,L/C,Alibaba trade assurance also acceptable.

4.What's your warranty?

Re:All our products we offer one year warranty or 1500 hours which comes first.

5.What's your MOQ?

Re:One set.

6.What's the frequency of diesel generators?

Re:50Hz/60Hz

7.Do you have single phase or three phase diesel generators?

Re:Sure,we have single phase and three phase diesel generators.

8.What's the voltage of your diesel generator?

Re:220/110V,380/220V,400/230V,415/240V,440/260V,460/260V,460/270V,and double voltage.
