150kva diesel generator prices/Ricardo engine genset

FOB Reference Price:Get Latest Price
US $2,120-5,425 / Sets | 1 Set/Sets 150kva diesel generator prices/Recardo engine genset (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HIGH TECH
Model Number:
HR-120GF
Output Type:
AC Three Phase
Speed:
1500/1800rpm
Frequency:
50/60Hz
Rated Power:
120kw/150kva
Rated Voltage:
400/230V or as requirement
Rated Current:
216 A
Engine:
Ricardo
Alternator:
Stamford,Marathon,Leroy some,etc.
Function:
AMF,ATS
Module:
GU620A
Control panel:
Digital
Regulator:
AVR
Noise Level:
75dBA
Protection class:
IP23
Certificate:
ISO,CE,EPA
Name:
150kva diesel generator prices/Recardo engine genset
SupplyAbility
SupplyAbility:
360 Set/Sets per Month 150kva diesel generator prices/Recardo engine genset
Packaging & Delivery
Packaging Details
Standard export package(Plywood)
150kva diesel generator prices/Recardo engine genset
Port
Qingdao,China
Lead Time :
10 days after the deposit
Video Description

150kva diesel generator prices/Recardo engine genset

Product Description



Weifang Ricardo engine, 295D, 2100D, 495D, 495ZD, K4100D, K4100ZD, K4102D, K4102ZD, R4105D, R4105ZD, R4105AZD, R4105AZLD, R6105ZD, R6105AZD, R6105AZLD, R6105IZLD, R6113ZLD, R6126ZLD. With power from 10kw to 250kw for diesel generator.



a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)

b,12V/24V DC start motor and storage battery

c,Brushless, Self-excited, IP23, insulation class H alternator

d, 40°C radiator as standard, 50°C is optional

e,All generator sets are gone through rigorous testing  before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water   temperature, low oil pressure, battery charging fail, emergency stop).

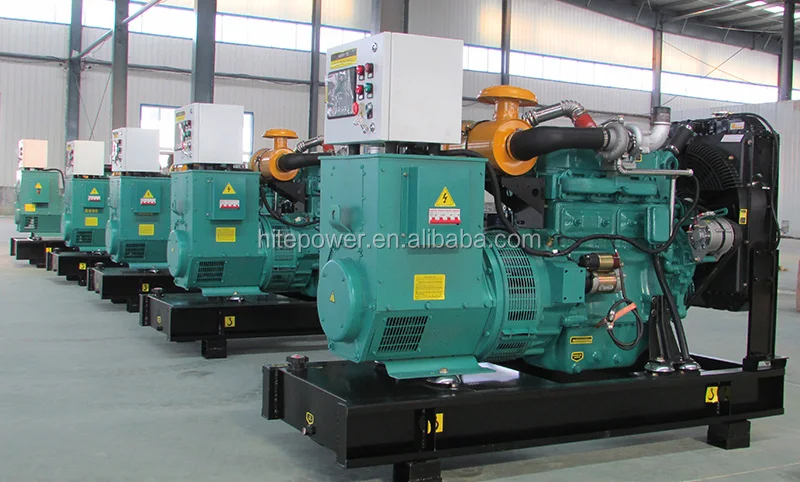

 Ricardo Generator_33

Parameters of 150kva diesel generator

Rated power

120kw/150kva

Model

HR-120GF

Type

open type,soundproof,weather proof type, mobile type as your required

Rated voltage

400/230V,240/120V etc,as required

Rated frequency

50Hz/60HZ.

Rated current

216A

Rated speed

1500/1800rpm

Connection type

single phase or 3P4W

Voltage governor

AVR

Start method

electric starting



The data of 150kva diesel engine details:

Brand

Ricardo

Engine model

R6105IZLD

Rated power(kw)

132kw

Max Power(kw)

145.2

Bore*Stroke(mm)

105*135

Lub Oil Capacity(L)

18

Rated fuel consumption(L)

30.9

Displacement(L)

7.01

Cooling Method

  water cooled

Rated speed

 1500/1800 rpm

Intake type

 Turbocharged

speed governor

 electrical

Starting method

12/24V DC electric starting

Stroke

 4 stroke



Brushless alternator Specification

Alternator Brand

Stamford,Engga,Mecc-alte,Marathon ...

Exciter Type

Brushless, Self-excited

Rated Speed

1500/1800rpm

Rated Frequency

50/60hz

Phase

                            three or single

Rated Voltage

400V (Available with customer requirements)

Power

0.8

Voltage Adjust Range

≥5%

Protection Grade

IP23

Insulation Grade

H







Standard configuration:

--Ricardo diesel engine
--Shanghai Stamford brushless with 100% copper alternator,
--Steel chassis with 8 hours fuel tank ,
--Hoist &Fork truck set for easy moving,
--Standard shock absorbers,
--Ordinary instrument control cabinet,
--High quality fuel pipe with clips,
--Battery cable connection,
--12V*2 non-maintance batteries
--Flexible Exhaust Connector.
--MCCB, Muffler,Radiator Fan, Air Filter.
--Installation Accessories, Tool Kit & Manual Books.
--Plywood case package.



Diesel genearators




Company Information

  750X650-Company Information.jpg

FAQ

List some questions below we think you may want to know, if you have more doubts, we are right here to help you.

1.What's your power range of diesel generators?

Re: We can offer the range from 2kW~3000kW

2.What's your delivery time?

Re: 7-15 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.

3.What's your payment?

Re: We accept T/T, L/C, Alibaba trade assurance also acceptable.

4.What's your warranty?

Re: All our products we offer one year warranty or 1500 hours which comes first.

5.What's your MOQ?

Re: One set.

6.What’s the frequency of diesel generators?

Re: 50Hz/60Hz.

7.Do you have single phase or three phase diesel generators?

Re: Sure, we have single phase and three phase diesel generators.

8.What’s the voltage of your diesel generator?

Re: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage.
