fluid bed circulating gasifier/biomass wood gasification with long life and cheap price

FOB Reference Price:Get Latest Price
US $156,000-225,600 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HT600B
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HAITAI
Voltage:
220V/380V
Power(W):
10kw
Weight:
16530kgs
Dimension(L*W*H):
15000*5000*6000mm
Certification:
CE&ISO
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Raw material:
stainless steel
color:
any color you like
material:
woodchips,corn straw,animal manure and so on
SupplyAbility
SupplyAbility:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(day) 60 90 To be negotiated



fluid bed circulating gasifier/biomass wood gasification with long life and cheap price



1.  Introduction to products



     Our Biomass gasifier adopts downdraft fluidized bed technology, turn various of biomass material into combustible gas, then remove the dust, cooling, remove the tar, at last get high grade energy from low grade energy.

This technology not only confirms the biomass gasifier gas work continuously, but also improve the heat value of the combustible gas, reduce the tar content.



2. The occurrence of biomass fuel gas



     Biomass material get into the gasifier reactor from the top of the gasifier,then it will be dryed and heat, then along with the temperature increment, its volatile matter will be separated out and pyrolysis under high temperature, after pyrolysis the gas and carbon will react with supply air in the oxidation zone, then generate the CO and steam, the heat will use for remain dry area, pyrolysis and the heat absorption reaction in the reducing zone. The gas which generated from burning will go through high temperature carbon reduction zone, eact with carbon layer(C+CO2=2CO,C+HO2=H2+CO), become CO,H2,CH4,CmHn, etc.combustible gas. The tar under oxidation and decomposition. This technology improves the heat value of the gas and also reduces the tar.



3. Biomass material



     Suitable to all kinds of biomass material. Requirements for material:(1)Humidity of the raw material<20%,(2)Raw material size <20mm.To parts of material which cannot reach the requirement, it needs to crush and dry.

Raw Material.jpg



4.Biomass fuel gas composition



  H2—12.3%   CO—22.5%    CH4—2.3%   CO2—12.5%    N2—48.8%   O2 1.4%  CH—0.2%.



5.Biomass gasifier machine models



Model

HT-600B

Type

Downdraft type circulating fluidized bed

Gas output

                        600m3/h

Consumption Material

200-300kgs/h

Gas caloric value

4600-5200KJ/m³

Gasification efficiency

>86%

Draught fan Power

220V (Standard power,50Hz)

Application

200kw Biomass Generator

Raw material :

Rice husk, woodchips, sawdust, bark, shavings, crop stalks, coconut hull, olive pomace, bagasse., plastic waste , palm tree .cotton straw ........

Requirement of the feedstock particle size is ≤2 cm, moisture content ≤20 %.

































6.Biomass generator information



1)     High Performance Gas Engine.



2)     Stamford Brushless Alternator with AVR



3)     Control Cabinet (With HT2011)



4)     High performance Gas Pressure Regulator Made In Italy



5)     Advanced Ignition System



6)     IMPCO Air-Fuel Mixer Made in USA



7)     Stable Electronic Speed Governor



8)     High Performance Flame Arrester.



9)     Safely Explosion-proof System



10)  MCCB, Radiator Fan, Muffler, Air Filter



11)  2*12V Non-Maintenance Start Batteries

 ..

12)  )Flexible Exhaust Connector



13)  Installation Accessories, Tool Kit & Manual Boo



7. More photo of biomass gasifier and biomass generator

Biomass Gasifie_Sri Lanka.jpg

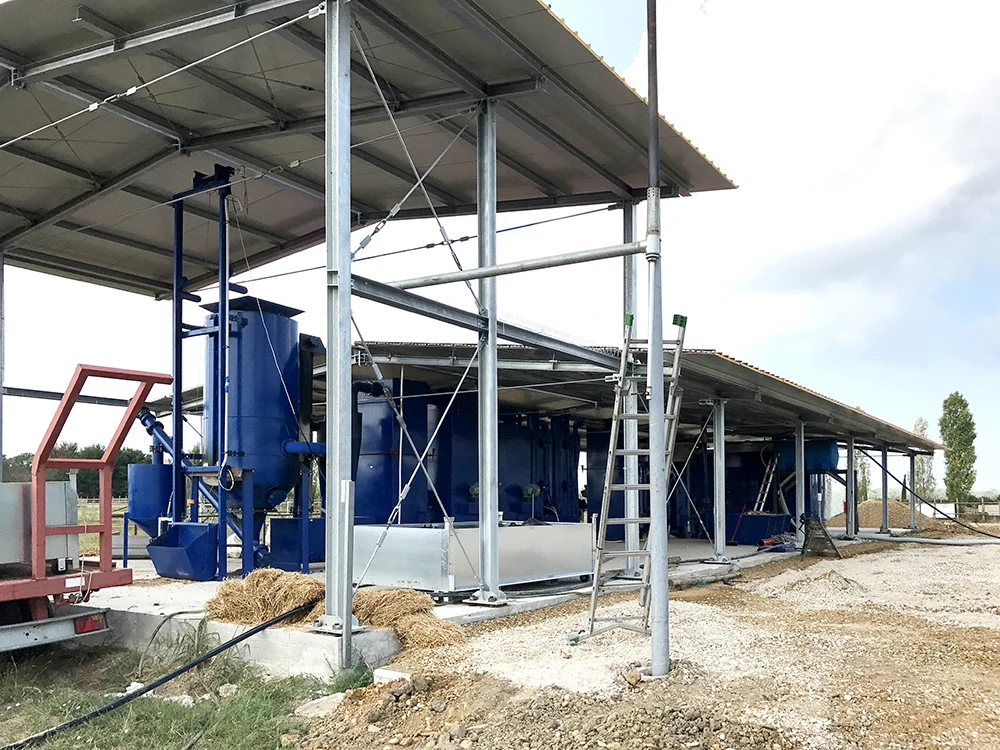

Biomass Gasifier-Italy.JPG
