High Performance Approved Biomass Gasifier and Electric Generator for Americas Market

FOB Reference Price:Get Latest Price
US $5,105-386,800 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HIGH TECH
Model Number:
HT-8GF--HT1000GF
Output Type:
AC Three Phase
Speed:
1500/1800 rpm
Frequency:
50/60Hz
Rated Power:
8-1000kw
Rated Voltage:
400/230V
Rated Current:
14.4A-1800A
start method:
electric start
cooling method:
water cooled
gas mixer formation:
Pre-Mix
module:
GU641B
regulator:
AVR
noise level:
65dBA
protechtion class:
IP23
Insulation class:
H
Warranty:
12 months
Certificate:
ISO,CE
Supply Ability
Supply Ability:
380 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood package on export standard.
Port
Qingdao,China

High Performance Approved Biomass Generator Set & Biomass Gasifier and Electric Generator for Americas Market




Advantages of our technical spcifications:

1. An advanced high-energy ignition system, the engine ignition is reliable.
2. Using advanced electronic governor and gas regulator system, make the unit more stable and reliable.
3. Unit-specific components, convenient maintenance, low cost.
4. Good economy, low operating costs, long life unit.
5. Using high-profile cabinet, integrated treatment diagnostic techniques. explosion-proof integrated process control technology. unit to achieve multi-level protection, run more secure.



Techinical requirement of biomass gasifier and electric generator:

1. operation condition:
Ambient temperature: <45°c
sea level: < 1000m
Humidity ratio: <60%
2. Lubricating oil: 15w/40L-ECD suggested
3. Gas intake pressure: < 0.45 mpa
4. Impurity particle size: <5μm ,no free water
5. Content of sulfur: ≤ 250mg/Nm3
6. Metnane content(CH4): > 50%(>5500kcal)



biomass gasifier and electric generator:

ModelHT-8GF--HT-1000GF
Rated power 8-1000kw
Phase No.3 phase or single phase
Rated voltage400/230,as your required
Rated frequency50Hz/60HZ
Rated current14.4-1800A
Voltage regulatorAVR
Start mode24V electrical starting
Speed regulation modeElectronic Governor


 Engine datas:

ModelHT2100HT4100HT4105GHT6105GHT6140GHT12V135GHT12V138GHT6190ZGHT12V190ZG
Typefour-stroke,water cooled,electronic ignition
Cylinder No.244661212612
Bore(mm)100100105105140135138190190
Stroke(mm)115115125125160150150210210
Displacement        (L)1.813.624.56.514.782526.935.771.5
Rated power      (kw)14283858132170236330550
Rated speed1500/1800 rpm1000/1200rpm
Gas con.biogas<0.55 m³/kw.h,natural gas<0.3 m³/kw.biomass <1.8 m³/kw



1



The brushless alternator :

Compliance with GB755,BS5000,VDE0530,NEMA MG1-22,IEC-34,CSA C22-100and AS1359 standards
BrandThe brand you may choice Stamford,marathon, leroy somer,Chinese brand,etc.
Excitation type            brushless

Number of Bearing

                  1
Rated current                14.4-1800A
Insulation class



                 H

Protection class              IP23
Voltage regulator              AVR



50kw6

 Main system configuration:

1).ALTRONIC Ignition System

-Altronic is the world biggest gas engine ignition system manufacturer,the leader of gas engine ingnition sysytem.

-Altronic iignition system can transfer low voltage to high voltage reliably,and ignite in arranged sequence and time.

2).SLITT spark plug

-SLITT is the world main industrial special spark plug manufacturer, expert in gas engine spark plug.

---The spark plug is powerful

---Reduse the repetive use of spark plug extending parts with the same cost .

---High voltage circuit insulated with surroundings.

3).Engine governing system

--High work reliablity

--High precision ,quick reaction

--Easy to operate ,rudeuce human mistakes

4)IMPCO Gas mixer

The value gas mixer could mix gases in ratio strictly according to requirements and could automatic adjust the mix ratio according to work conditions to realize rare combustion.

QQ20131022105043



The control system:



Automatic Control digital system of 24 hours monitor provides various speciations showing & protection.
 control 2.jpg



Main function of control system:

1. Display function: loading power, voltage, currencies, frequency, speed, temperature, oil pressure, running time etc.

2. Protection function: over-current, under-voltage, auto-regulate voltage, reverse power etc.

3. optional system: AMF & ATS



Performance feature:

*Built-in damper for anti-vibration .

*Small size ,low weight, easy to operating,installation and maintenance.

*World most famous brand diesle engine .

*Advanced and reliable AC alternator :Stamford,Marathon,Leroy Somer ,MVC.

*Full range protect function and alarm shutdown feature.

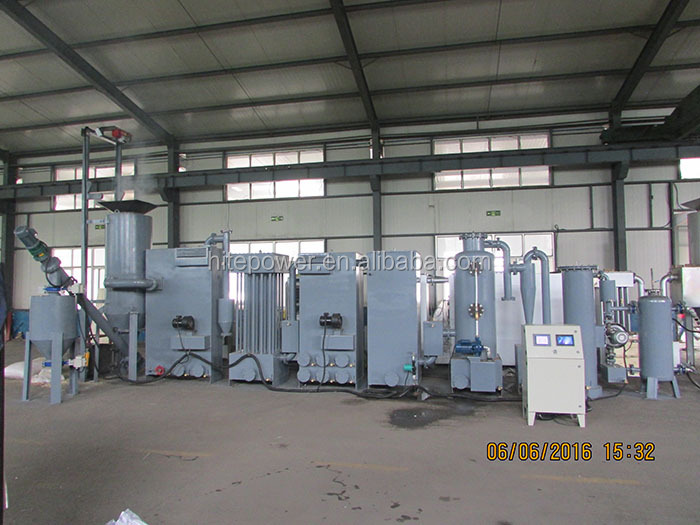

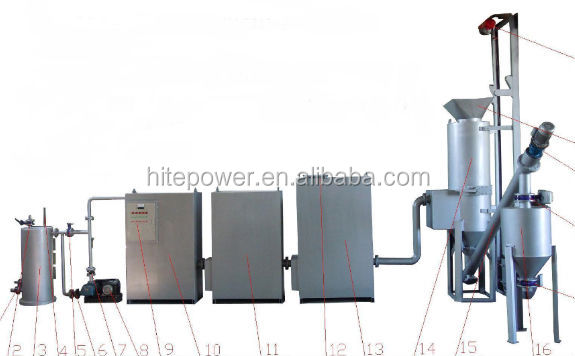

Gasifier photos:

.jpg





Our factory:




Our Services


  To be the best partner of electric power equipment.

  Please contact us for more information about  biomass gasifier and electric generator.
