Biomass gasifier adopts downdraft fluidized bed technology, turn various of biomass material into combustible gas, then remove the dust, cooling, remove the tar, at last get high grade energy from low grade energy.
This technology not only confirms the biomass gasifier gas work continuously, but also improve the heat value of the combustible gas, reduce the tar content.
The working principle of biomass gasifier price:
Biomass material get into the gasifier reactor from the top of the gasifier,then it will be dried and heat, then along with the temperature increment, its volatile matter will be separated out and pyrolysis under high temperature, after pyrolysis the gas and carbon will react with supply air in the oxidation zone, then generate the CO and steam, the heat will use for remain dry area, pyrolysis and the heat absorption reaction in the reducing zone. The gas which generated from burning will go through high temperature carbon reduction zone, reacting with carbon layer(C+CO2=2CO,C+HO2=H2+CO), become CO,H2,CH4,CmHn, etc.combustible gas. The tar under oxidation and decomposition. This technology improves the heat value of the gas and also reduces the tar.
Rice husk, woodchips, sawdust, bark, shavings, crop stalks, coconut hull, olive pomace, bagasse, plastic waste , palm tree .cotton straw Requirement of the feedstock particle size is ≤2 cm, moisture content ≤20 %.
Biomass fuel gas composition:

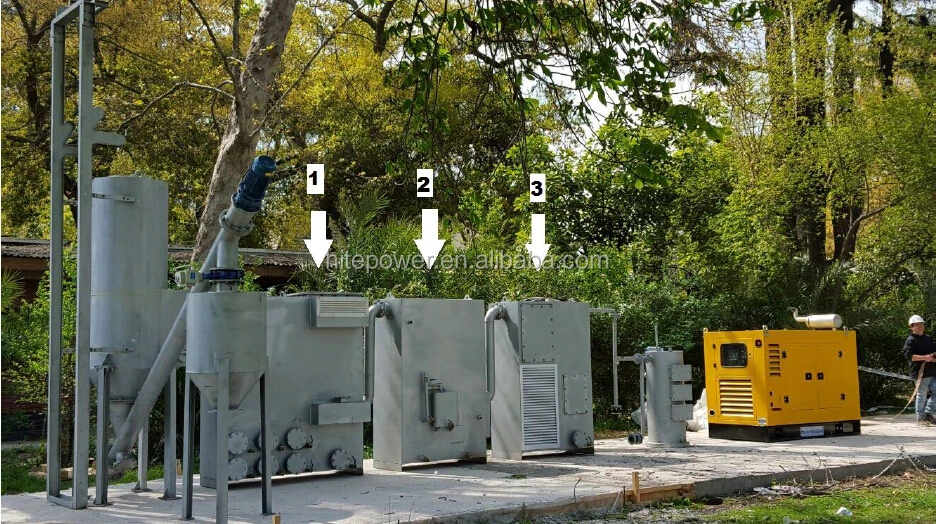

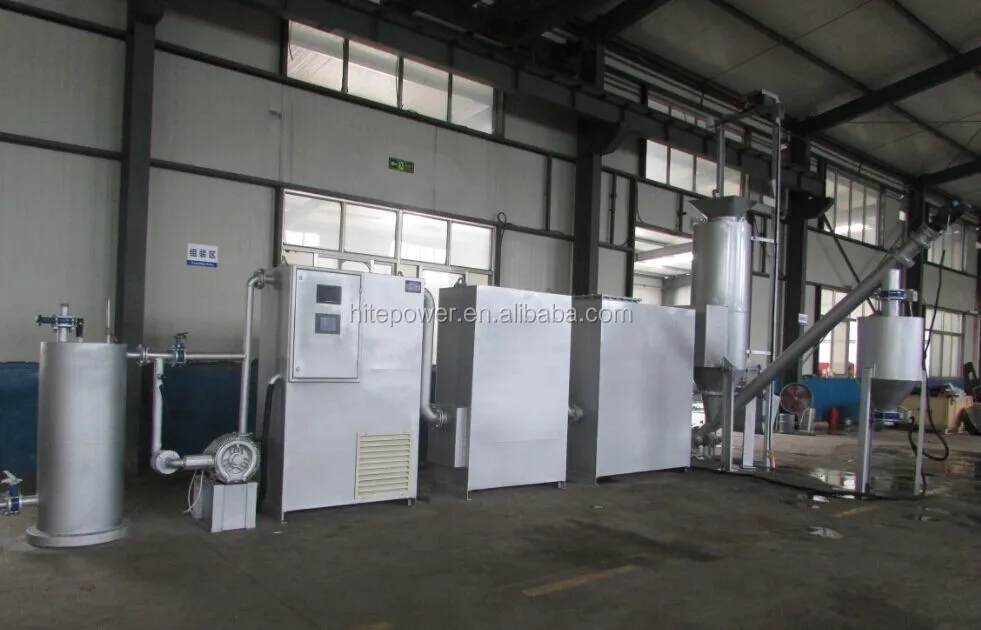

The sample picture for your referance:
1.The gasifier body adopts Mechanical ash clean system, combine with the feeding system , timed feeding, timed clean the ash, continuous produce gas.
2.Dust remover is made by 2 sets of cyclone separator used in series to clean the dust in the gas.
3.Cooler adopts wind pipe stucture, gas go through the wind pipe, cooled by the cold air which sended by the fan, remove the most moisture in this period.
4.Tar cleaner consist by 4 sets of tar remover, connect the cooling water from circulating water pump, to make sure the tar remover in the cooling water.
5.The centrifugal separator adopts the priciple of centrifugal machine, it can separate the tar and gas efficiently because of the different weight.
6.Filter adopts dry type filtering method, the filter medium usually use the corncob or the industrial gas liquid separation mesh.
7.Roots blower is the operating power of the whole equipment, it sucks air into the gasifier as the oxidizing agent to make it react. It make all the gasify system become useful gas .
8.Splitter is used for processing the qualify and unqualify gas, and split them into two ways. Filtering cleaner last time filter process, adopts the dry filter method.
biomass gasifier are used in abroad:
Packaging & Shipping
we often by sea or accordings to your request.
1) Shipment by FCL or LCL.
2) Delivery time: 7-15 working days after the deposit.
3) Package: Outside package: Plywood case on export standard. Inner package: Shrinking film with foam.
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Widely power range from 8KW to 1200KW.
4) Provide debugging and maintenance service to you.
5) Professional 8 Hours testing for Generator before shipment.
6) 1500 hours warranty on the spare parts free provide & technical support in machine life.
1 When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will send offer to you priority.
2How can I know your quality?
We using world famous brand products and genuine parts, we test every unit generator set before goods delivery in 100% load for more than 3 hours. Warmly welcome you to visit our factory to see the testing. Product's warranty is 1 year or 1000 hours , whatever which comes first.
3 Can you do the Customized brand for us?
Yes. We make the brand name with your logo and your product model on the generator set.
Your good ideas will be welcomed.
4 How long can I expect to get product?
According to your order quantity, usually, After we received your 30% deposit, we will delivery in 25-30 days.
5 What is the price term ?
It can be EXW, FOB, CIF etc......
6 What is the payment method?
Mainly by T/T, 30% deposit in advance, 70% balance paid before shipment .
For any further questions or interests, Please feel free to contact me !
