Lofe-Long Free Service Water Cooled 20kw biogas generator set

FOB Reference Price:Get Latest Price
US $4,430-5,700 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
350 Set/Sets per Month
Port:
Qingdao Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HAITAI
Model Number:
HTG-20GF
Output Type:
AC Single Phase
Speed:
1500/1800rpm
Frequency:
50/60HZ
Rated Power:
20kw
Rated Voltage:
400/230V
Rated Current:
36A
Start method:
24V DC Electrical Start
Cooling method:
Water Cooled Method
Speed governor:
Electronic speed govenor
Aspiration type:
Natural or Turbocharged
Controller:
Deepsea,Smartgen
Noise level:
75dba
Regulator:
AVR
Excitation type:
Brushless
Fuel Type:
Biogas
Warranty:
12 Months 1500h
Packaging & Delivery
Packaging Details
1) Outside: Plywood case on export standard.
2) Inner: Shrink film with foam.
Delivery Time
Shipped in 15 days after payment

Lofe-Long Free Service Water Cooled 20kw biogas generator set

20kw biogas generator  set
1)Steady power output
2)Automatic control digital system
3)Professional 8 hours test
4)ISO,CE.

Product Description

 Introduction of 20kw biogas generator set:



1) Choose HT POWER Ricardo series gas engine.



 Stamford, Marathon, Leroy Somer



3) Power range from 8kw-1000kw.



4) Suit for Natural gas, Biogas, LPG, Landfill gas, Biomass(Wood gas).



5) Applies to 24-hours uninterrupted power supply or standby power using.



Parameters of 20kw biogas generator set: (Sea-Level < 1000m, Temp < 40°C)




    Gas
    Generator

Gas Genset ModelHT-20GF
Rated Power20KW
Standby Power22KW
Rated Frequency50Hz
Rated Voltage400/230V
Rated Current36A
Rated Speed1500rpm
Power Factor0.8 (LAG)
Connection Type3P4W

   Gas
   Engine

ModelHT4100D
TypeIn-line, 4-Stroke.
Rated Power25kw
Standby Power27.5kw
Rated Speed1500 rpm
Cylinder No.4 Cylinders
Bore × Stroke100×120 mm
Displacement3.768L
Start MethodElectric
Rated Fuel Consumption

 <0.6  m³/kw.h ,

Aspiration TypeNatural
Speed GovernorElectronic
Cooling methodWater cooled
   Stamford
   Alternator
Rated Power20KW
Rated Voltage400/230 V
Rated Current36 A
Rated Speed1500 rpm
Connection Type3 P 4 W
Power Factor0.8
Excitation TypeBrushless
Insulation TypeH
Protection TypeIP22
Voltage RegulatorAutomatic (AVR)



Gas Required:



1) Gas Pressure range: 0.8-30Kpa (8kw-200kw), 50-200Kpa (250kw-1000kw).



2) Biogas: Heat Value>5500KCAL, CH4>50%, H2<5%,H2S<100ppm, Impurities<5um, No water.



    Biomass: Heat Value>2000KCAL, Tar<20mg/cbm, H2<5%,H2S<100ppm, Impurities<5um, No water.



    The power output will be reduced if heat value going down.

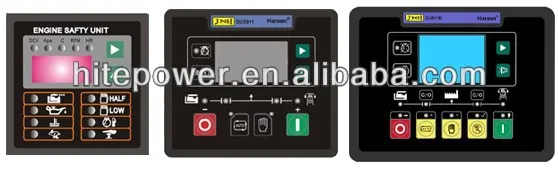

Automatic Control Digital system of 20kw biogas generator set:

1)  Adopt Genset controller with LCD display, taking microprocessor as the core.



2) The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generate

     electricity /grid electricity.



3) The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours,

     accumulative total power and number of starts.



4) Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current,

     over voltage, over frequency and phase failure etc.



20kw biogas generator set standard configure:







Optional Equipments of 20kw biogas generator set:

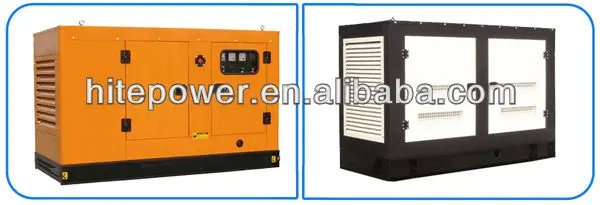

1) Soundproof Type 20kw biogas generator set (Noise Level < 75dBA @ 7 meters)

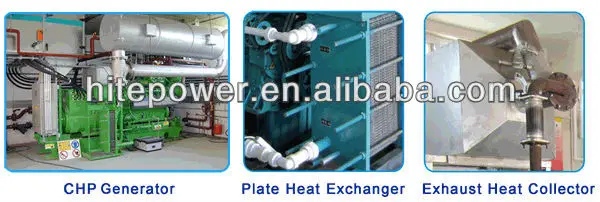

2) CHP 20kw biogas generator set (Plate Heat Exchanger & Exhaust heat collector):

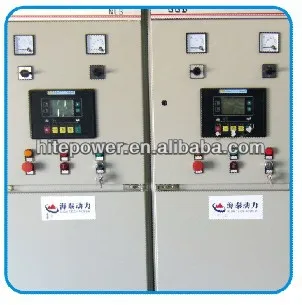

3) Auto Paralleling System of 20kw biogas generator set:

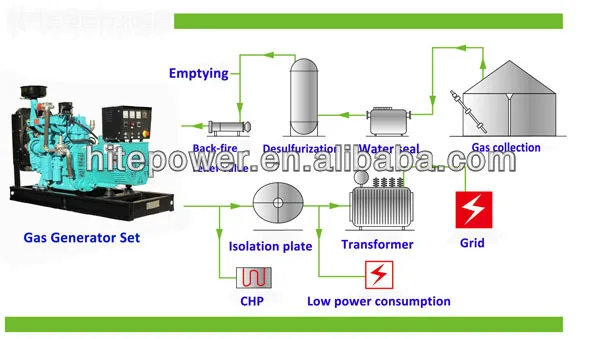

Gas power generation operation flow chart:

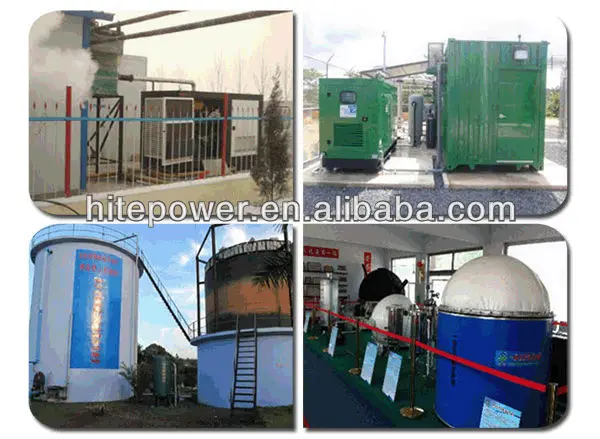

HT POWER 20kw biogas generator set working at plant:



Company Information

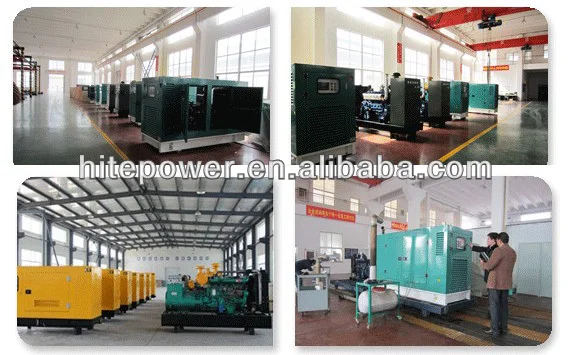

Our Work-shops:







Our Certification:

Packaging & Shipping
1) Shipment by FCL or LCL
2) Delivery time: 7-15 working days after the deposit.
3)Package:  Outside package: Plywood case on export standard.
                        Inner package: Shrinking film with foam.
Our Services

Competitive Service:



1) More than 15 years experience of producing and exporting generators.



2) Professional 8 Hours test on 0, 25%, 50%,75%, 100%,110% load before delivery.



3) 1800 hours warranty on spare parts free provide and technical support in machine life.



4) Main parts like ECU, GAS MIXER, PRESSURE regulator,etc are origin made in USA& Italy.



5)





Favorable price, Fast delivery, Excellent quality and Best service.
